Fanouts

A fanout is a message-routing target. Instead of sending the same message to many entities one at a time, you publish once to a fanout and Contact fans the message out to every entity in it. Fanouts are about delivery, not organization: a fanout exists so you can address one or more entities with a single publish.

A fanout holds a list of member entities. When you publish to the fanout, each member receives its own copy of the message, and you get back a per-entity delivery report.

Fanouts vs. Directories

A fanout is about messaging: one publish reaches many entities. A directory is about organization and access: where an entity lives in your fleet hierarchy and who can manage it. An entity can sit in a directory and also be a member of one or more fanouts; they don't overlap.

Creating a fanout#

Navigate to Entities → Fanouts
Click + to add a fanout
Enter a name, description, and the tag that will route messages to it
Search for entities to include, then click Create

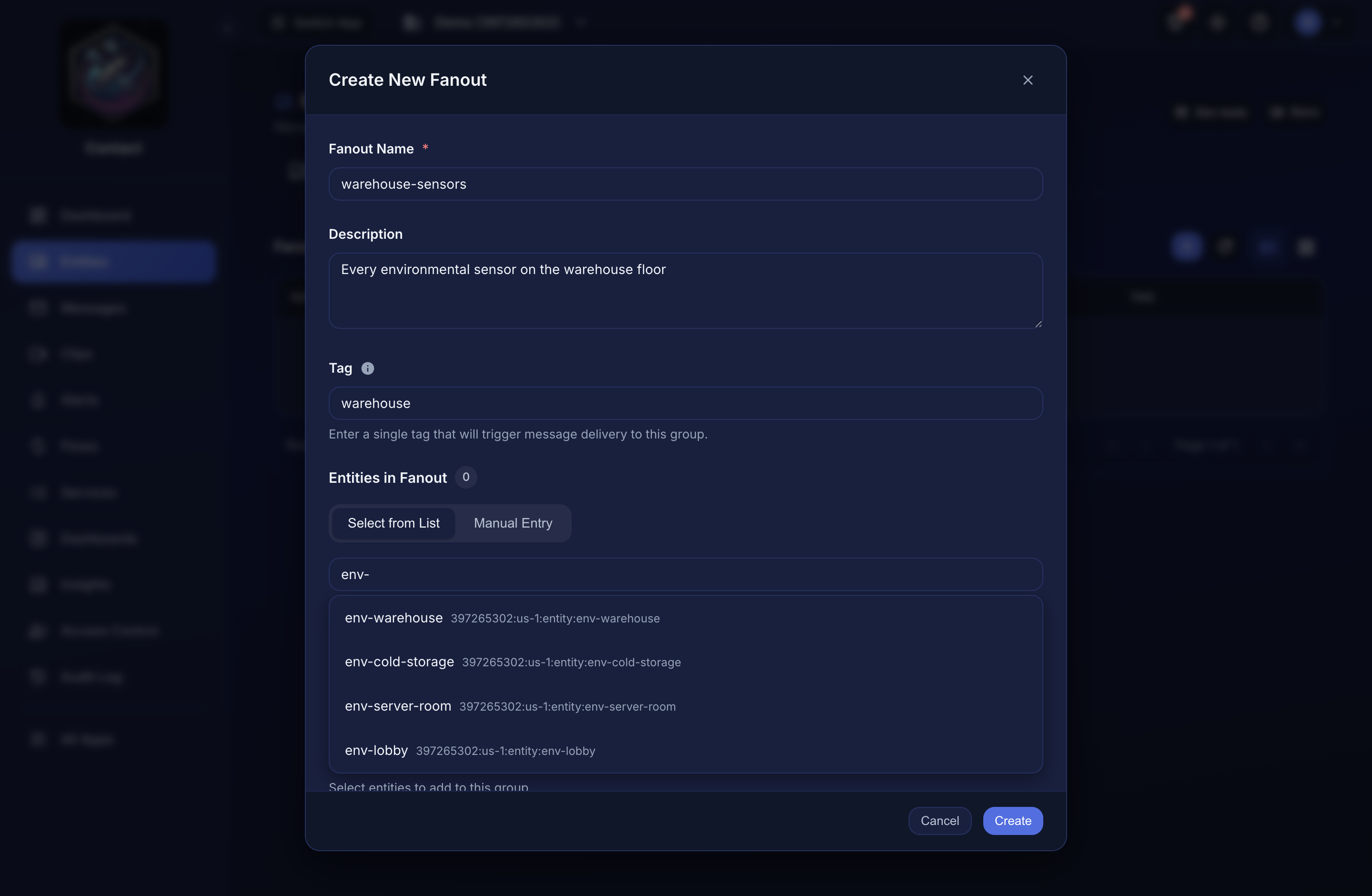

The Create New Fanout form with name, description, tag, and an entity picker Members can be picked from the list or entered manually; the tag is what routes messages here.

A new fanout starts empty. Add members to it before publishing.

Managing members#

Members are managed on the fanout itself: adding an entity to a fanout does not change the entity, it just adds it to the fanout's delivery list.

Add a member: from the fanout's page, add an existing entity. You can only add entities you have permission to publish to.
Remove a member: remove an entity from the fanout's member list. The entity itself is unaffected.

An entity can belong to more than one fanout, and adding the same entity twice is a no-op, since membership is a set.

The same operations are available over the API:

Method	Path	Description
`POST`	`/api/fanouts/{fanout}/entities`	Add an entity to the fanout
`DELETE`	`/api/fanouts/{fanout}/entities/{entityId}`	Remove an entity from the fanout

In these paths, {fanout} is the fanout's name. Both calls address the member by its full resource path, not its entity name. POST takes a JSON body:

json


{ "entityId": "1234567890:us-east-1:entity:temperature_sensor_01" }

and DELETE takes that same resource path as the {entityId} segment.

Publishing to a fanout#

Publish a message to the fanout and Contact delivers it to all member entities. Here {fanout} is the fanout's name:

code


POST /api/fanouts/{fanout}/publish
{
  "msgType": "publish",
  "data": { "action": "reboot" }
}

Field name differs from single-message sends

The fanout publish body uses msgType (camelCase), where the single-message endpoint (POST /api/entities/message) uses msg_type (snake_case). Use the right casing for each endpoint. msgType is optional and defaults to publish; sending a custom type such as command still delivers the message but hides it from the Messages page, which lists publish messages only.

The response reports delivery for the whole fan-out:

Field	Description
`totalEntities`	Number of members the fanout attempted to deliver to.
`successfulDeliveries`	How many members received the message.
`deliveredTo`	The entities that received it.
`failedDeliveries`	Any members the message could not be delivered to, with a reason.

Permission is checked once at the fanout level: you need publish access to the fanout to broadcast to its members.

When to use a fanout#

Reach for a fanout whenever you need to address several entities at once:

Broadcast a message to every device in a fleet or zone; each device acts on it in its own

@client.on() handler (reload config, change a threshold, reboot).

Broadcast a state change or alert to all entities that should react to it.
Push the same data to a set of entities without tracking and looping over their IDs yourself.
Send a file to every member at once. A fanout broadcast is one scan, one stored object,

and the object is kept until the last member collects it, so a fleet-wide push costs a single scan. See File transfer.

If you only ever message entities individually, you don't need a fanout: fanouts earn their keep when one message should reach many entities.
