Workflow Editor Overview

The Strand workflow editor is a visual, drag-and-drop interface for building event-driven workflows.

Interface Components#

The editor: compact Run/Save chrome, canvas in the middle, node palette on the left. Drag a node onto the canvas to add it.

Canvas#

The main workspace where you build your workflow. Nodes are placed here and connected to form your workflow graph.

Node palette#

The left dock lists built-in nodes, functions, flows, and connectors. Drag a card onto the canvas to add it. A click on the card does not add a node.

Toolbar#

Located at the top of the editor:

• Flows - Return to the workflows list
• Workflow name - Unsaved changes show as a dot next to the name
• Run - Execute the workflow with a test event
• Save - Save the current workflow version
• More - Workflow settings, variables, runs, and replay

Node Inspector#

Opens on the right side when you select a node. Use it to:

• View and edit node configuration
• See the node ID (for templating references)
• Delete the node
• Update the node label

Selecting a node opens the inspector, including the exact templating expressions for reaching its output.

Edge Inspector#

Opens when you select a connection between nodes. It shows the connection's source and target and an explanation of the handle colors (blue = output, green = input). Edges carry no settings of their own, so use it to delete the connection.

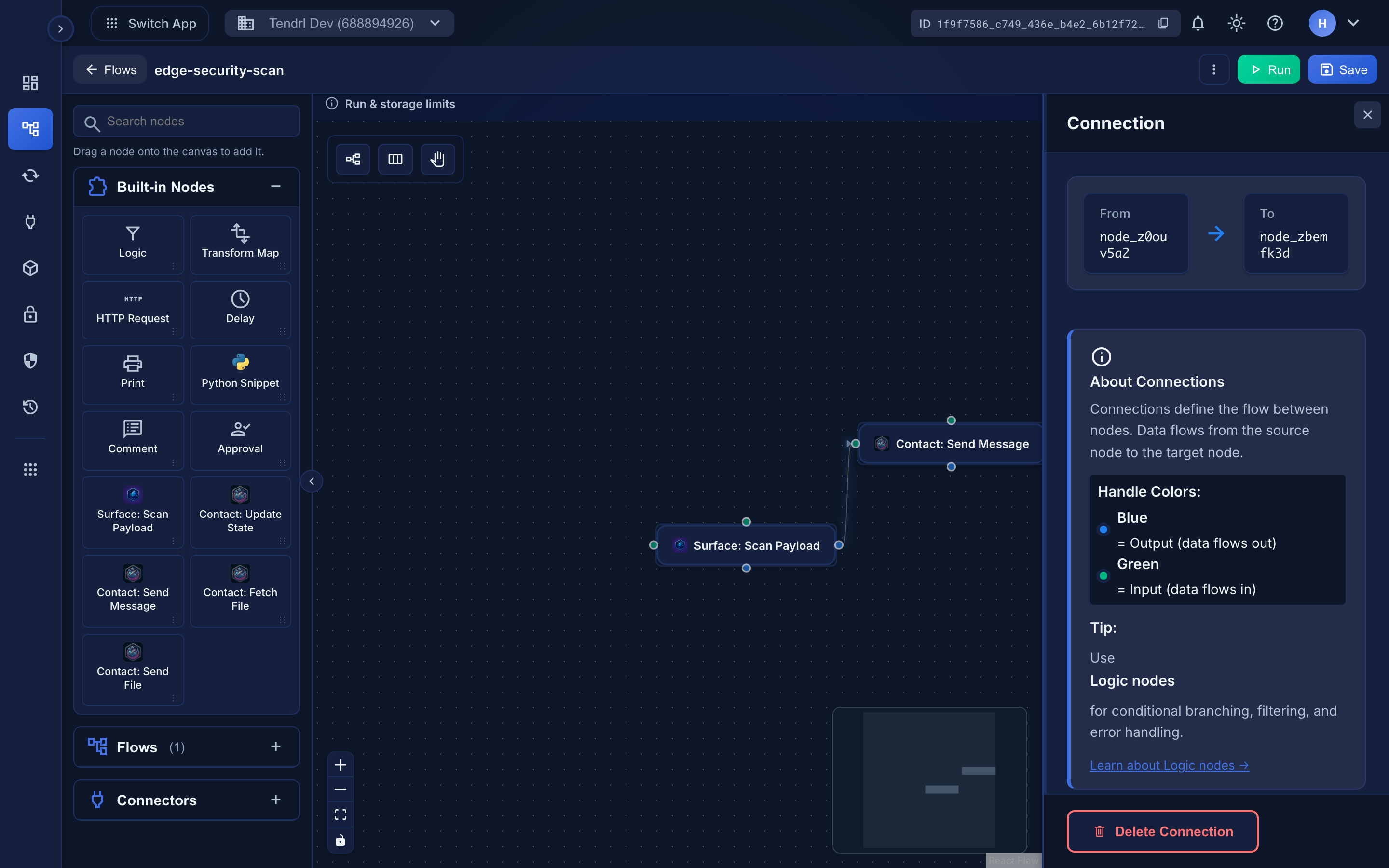

The Edge Inspector, open on a selected connection.

Workflow Concepts#

Nodes#

Nodes are the building blocks of workflows. Each node:

• Receives input events
• Processes them according to its configuration
• Produces output events
• Can have multiple outputs (branching)

Edges#

Edges connect nodes and define the execution flow. Edges are always traversed: they have no conditions or relationship types. Data flows from the source node to the target node.

Branching and iteration are done with a Logic node, not with edges:

• Branching: a Logic node in If/Else mode routes to its if or else handle.
• Iteration: a Logic node in Foreach mode fans out over its each handle and aggregates on its done handle.

See Conditional Logic and the Logic Node for details.

Workflow Types#

Strand supports two workflow types:

• Triggered (default): Runs when triggered manually, via webhook, or from another workflow (flow.call)
• Scheduled: Runs automatically on a recurring cron schedule. Choose from simple presets (every 5 minutes, hourly, daily, etc.) or use a custom cron expression with timezone support.

You choose the workflow type when creating a workflow. Scheduled workflows show a clock badge in the workflows list and display their next scheduled run time.

Entry Nodes#

Nodes with no incoming edges are entry nodes. The workflow starts execution from these nodes.

Terminal Nodes#

Nodes with no outgoing edges are terminal nodes. When all paths reach terminal nodes, the workflow completes.

Building a Workflow#

Canvas Controls#

Located in the top-left of the canvas:

• Rearrange - Automatically arrange nodes on the canvas
• Horizontal/Vertical - Toggle between horizontal and vertical layout directions

Tips#

• Use descriptive node labels to make workflows easier to understand
• Test incrementally - build and test workflows step by step
• Use Workflow Variables for reusable non-sensitive configuration values
• Use the Global Vault for sensitive secrets (API tokens, passwords)
• Check execution logs to debug issues
